Home > Products > washing machine spare parts > Vertical glass washing machine 2500A

Vertical glass washing machine 2500A

  • Vertical glass washing machine 2500A
  • Vertical glass washing machine 2500A
  • Vertical glass washing machine 2500A
  • Vertical glass washing machine 2500A

Vertical glass washing machine 2500A

    Unit Price: 35000 USD
    Min. Order: 1 Set/Sets
    Brand: LIJIANG
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 35SETS
    Certificate: CE
    HS Code: 8464901900
    Port: qingdao

Basic Info

Model No.: 2500A

Product Description

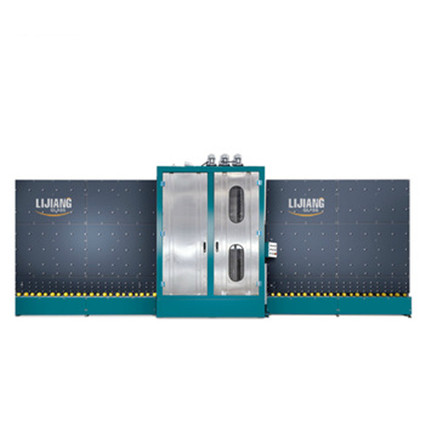

Glass washing machine technical parameters CP-2500A


glass washing machine CP-2500A used for cleaning and drying

the upper and lower surfaces of ordinary plate glass and high

quality low-e glass,it is composed of incoming segment, cleaning

air-drying segment and outgoing segment.


H53cc8624553e4df88dd79bf18c3e308bx.png_350x350


Maximum glass width

2500mm (effective maximum: 2650mm)

Minimum glass specification

400mm×400mm (limited to single row on left and right sides)

Glass thickness

3mm-25mm (digital display)

Speed range

glass thickness within 3-25mm Vmax=1-12m/min

Main drive, brush speed regulation method

frequency control

Table height

900±25mm

Total power

42KW(water-bearing wind heating: 15KW)

Water source

self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)

Power source

380V 50Hz

Dimensions (length × width × height)

approximately 6260*4800*3100

Weight

3940kg


Materials

The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.

U831de4b7e1544a4384932223ddf3504aP.jpg_350x350

H222e5fb438234cf8ade9a4d8e10684aeS.png_350x350

Other Insulating Glass Equipment of our company:
1.Insulating Glass Production Line
2.Spacer Bending Machine
3.Desiccant Filling Machine
4.Butyl Extruder Machine
5.Insulating Glass Sealing Robot
6.Glass Washing Machine
